128-position, 50kR digital potentiometer with 129 taps, featuring non-volatile memory and an SPI serial interface. This single-circuit component operates from 1.8V to 5.5V, with a typical supply current of 550uA and a maximum operating temperature of 125°C. Packaged in an 8-pin PDIP with through-hole mounting, it offers 20% resistance tolerance and is RoHS compliant.
PackagePDIP
Current550uA
Resistance50kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP4141-503E/P technical specifications.
General
| Package/Case | PDIP |
| Height | 0.195inch |
| Interface | SPI, Serial, 4-WIRE |
| Length | 10.16mm |
| Max Operating Temperature | 125°C |
| Memory Type | Non-Volatile, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Positions | 128 |
| Number of Taps | 129 |
| Operating Supply Voltage | 5V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 50kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Supply Current | 550uA |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4141-503E/P Datasheet
Download the complete datasheet for Microchip MCP4141-503E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

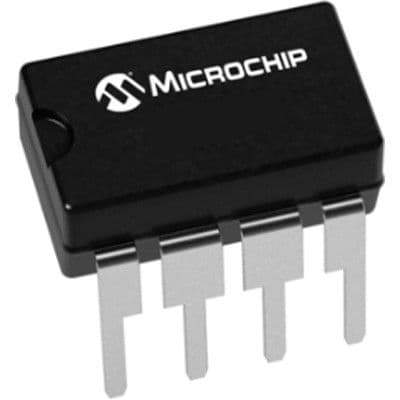

Product Images
