128-position, 5kR digital potentiometer with 129 taps, featuring a 4-wire serial SPI interface. This single-circuit, single-element device operates from 1.8V to 5.5V with a typical 5V supply, offering non-volatile EEPROM memory. Packaged in a 3.9mm wide SOIC surface-mount case, it operates across a -40°C to 125°C temperature range.
PackageSOIC
Current550uA
Resistance5kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4142-502E/SN technical specifications.
General
Package/Case
SOIC
Height
1.25mm
Interface
SPI, Serial, 4-WIRE
Length
4.9mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
550uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4142-502E/SN Datasheet
Download the complete datasheet for Microchip MCP4142-502E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

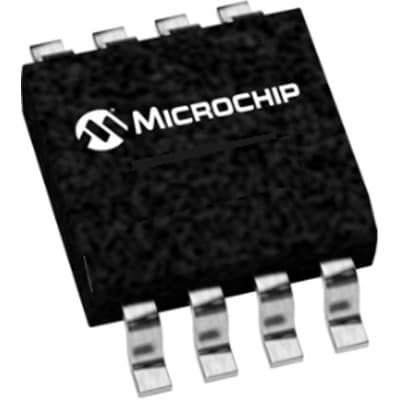

Product Images
