129-position, 50kΩ digital potentiometer with SPI serial interface. Features volatile memory, 1-circuit, 1-element design, and 257 taps. Operates from 1.8V to 5.5V with a typical supply current of 1mA. Packaged in a lead-free, RoHS-compliant SOIC-8 surface-mount package with dimensions of 4.9mm (L) x 3.9mm (W) x 1.25mm (H). Suitable for operation between -40°C and 125°C.
PackageSOIC
Current1mA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4152-503E/SN technical specifications.
General
Package/Case
SOIC
Height
1.25mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
257
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
1mA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4152-503E/SN Datasheet
Download the complete datasheet for Microchip MCP4152-503E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

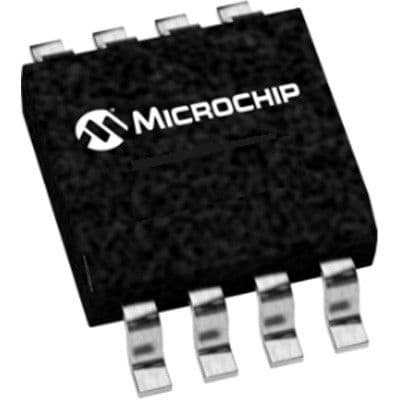

Product Images
