10k Ohm linear digital potentiometer with 257 positions. Features EEPROM non-volatile memory and SPI serial interface. Operates from 1.8V to 5.5V with a maximum supply current of 550uA. Packaged in an 8-pin SOIC surface mount with dimensions of 4.9mm (L) x 3.9mm (W) x 1.25mm (H). Suitable for automotive applications with a maximum operating temperature of 125°C.
PackageSOIC
Current550uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4161-103E/SN technical specifications.
General
| Package/Case | SOIC |
| Height | 1.25mm |
| Interface | SPI, Serial, 4-WIRE |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Type | EEPROM, , Non-Volatile |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Positions | 257 |
| Number of Taps | 257 |
| Operating Supply Voltage | 5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Supply Current | 550uA |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4161-103E/SN Datasheet
Download the complete datasheet for Microchip MCP4161-103E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

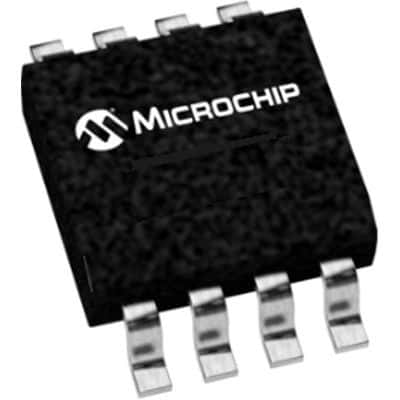

Product Images
