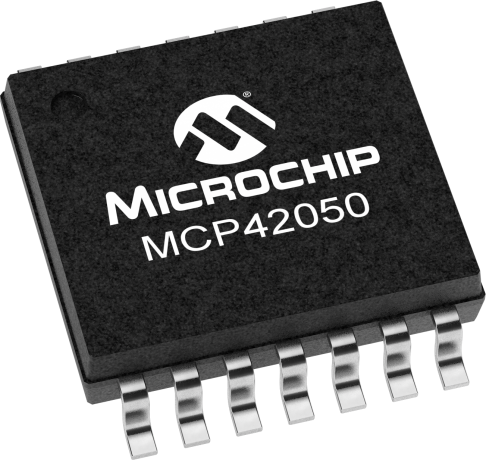

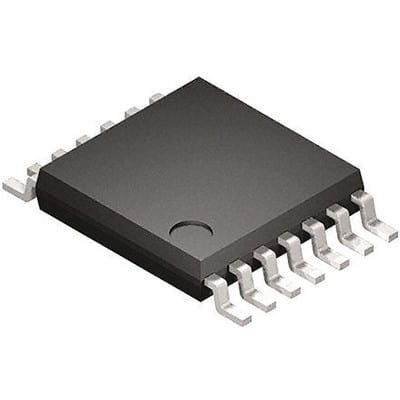

Dual 50kΩ digital potentiometer featuring 256 positions and a linear taper. Operates with a 2.7V to 5.5V supply voltage and utilizes a 3-wire serial control interface, compatible with SPI communication. This surface-mount component, housed in a 14-pin TSSOP package, offers two independent resistor elements and is lead-free and RoHS compliant. Maximum operating frequency is 10MHz, with a quiescent current of 10nA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP42050-I/ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP42050-I/ST technical specifications.
| Package/Case | TSSOP |
| Frequency | 10MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 256 |
| Number of Taps | 256 |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Quiescent Current | 10nA |
| Radiation Hardening | No |
| Resistance | 50kR |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Supply Current | 340uA |
| Taper | Linear |
| Tolerance | 30% |
| RoHS | Compliant |
