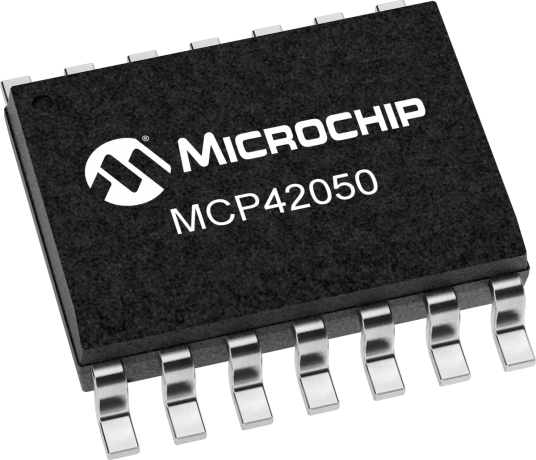

Dual 50kΩ linear digital potentiometer with 256 positions, featuring a 3-wire serial control interface (SPI). Operates from a 2.7V to 5.5V supply voltage with a maximum operating frequency of 10MHz. This surface mount component, housed in a 14-pin SOIC package, offers volatile memory and a low quiescent current of 10nA. Suitable for applications requiring precise resistance adjustment with a 30% tolerance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP42050T-E/SL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Frequency | 10MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 256 |
| Number of Taps | 256 |
| Package Quantity | 2600 |
| Packaging | Tape and Reel |
| Quiescent Current | 10nA |
| Radiation Hardening | No |
| Resistance | 50kR |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Supply Current | 340uA |
| Taper | Linear |
| Tolerance | 30% |
| RoHS | Compliant |
