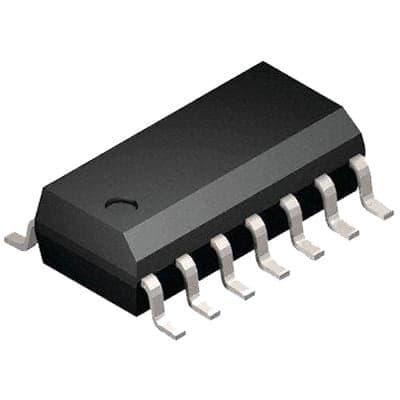

Dual-channel, 10kR linear digital potentiometer with 128 positions and 257 steps. Features SPI serial interface for control, operating from 1.8V to 5.5V with a typical 5V supply. Surface mountable in a 14-pin SOIC package, this volatile memory component offers a wide operating temperature range of -40°C to 125°C.
PackageSOIC
Current1mA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4231-103E/SL technical specifications.
General
Package/Case
SOIC
Height
1.25mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
8.65mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
57
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
1mA
Taper
Linear
Width
3.9mm
Compliance
RoHS
Compliant
