Dual-channel, 10kΩ linear digital potentiometer with 128 positions. Features SPI and 4-wire serial interface, non-volatile memory, and a maximum operating temperature of 125°C. Surface mountable in a 14-pin SOIC package. Operates from 1.8V to 5.5V supply voltage.
PackageSOIC
Current550uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4241-103E/SL technical specifications.
General
| Package/Case | SOIC |
| Height | 1.25mm |
| Interface | SPI, Serial, 4-WIRE |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 128 |
| Number of Taps | 129 |
| Operating Supply Voltage | 5V |
| Package Quantity | 57 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Series | WiperLock™ Series |
| Supply Current | 550uA |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4241-103E/SL Datasheet
Download the complete datasheet for Microchip MCP4241-103E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

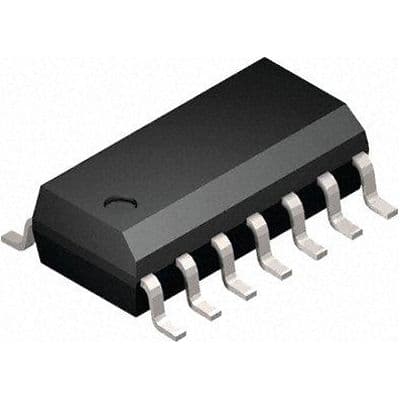

Product Images
