Microchip

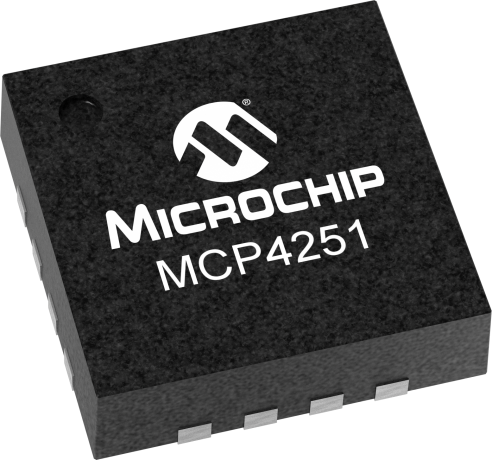

MCP4251T-104E/ML
100K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 257 POSITIONS, PQCC16, 4 X 4 MM, 0.90 MM HEIGHT, PLASTIC, QFN-16
PackageVQFN
Current1mA
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4251T-104E/ML technical specifications.
General
Package/Case
VQFN
Interface
SPI, Serial
Max Operating Temperature
125°C
Memory Type
Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
100kR
RoHS Compliant
Yes
Supply Current
1mA
Taper
Linear
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4251T-104E/ML Datasheet
Download the complete datasheet for Microchip MCP4251T-104E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
