Microchip
MCP4251T-503E/SL
50K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 257 POSITIONS, PDSO14, 3.90 MM, PLASTIC, SOIC-14
PackageSOIC
Current1mA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4251T-503E/SL technical specifications.
General
| Package/Case | SOIC |
| Interface | SPI, Serial |
| Max Operating Temperature | 125°C |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 256 |
| Number of Taps | 257 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 50kR |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Taper | Linear |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4251T-503E/SL Datasheet
Download the complete datasheet for Microchip MCP4251T-503E/SL to view detailed technical specifications.
No datasheet is available for this part.

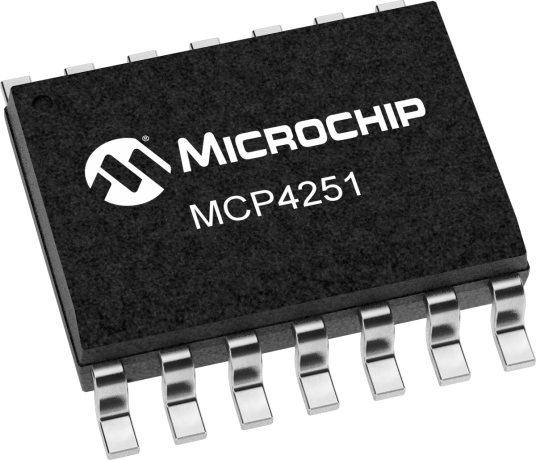

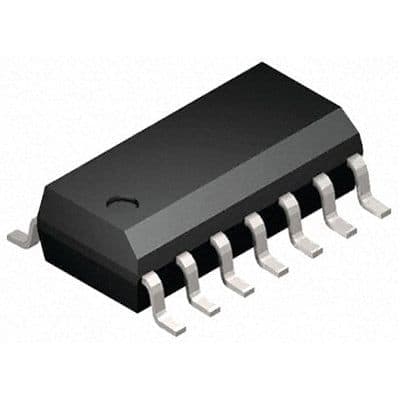

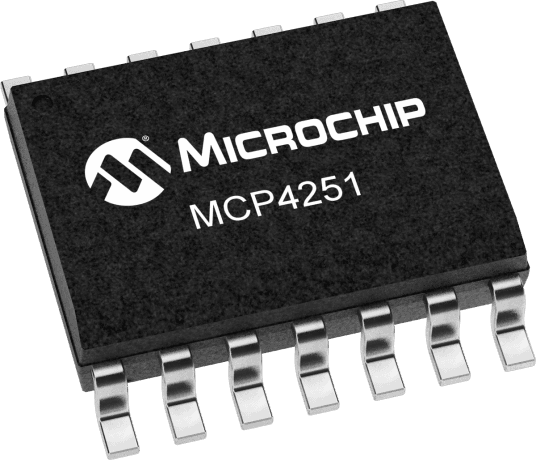

Product Images
