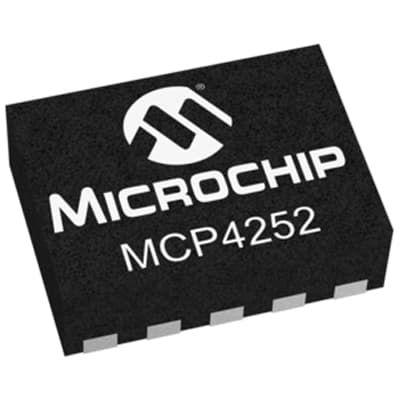

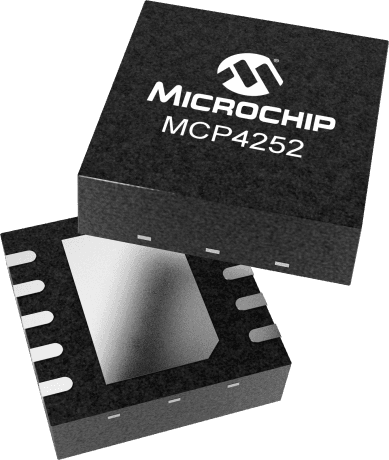

The MCP4252-103E/MF is a dual digital potentiometer from Microchip, packaged in a DFN EP surface mount package. It operates over a temperature range of -40°C to 125°C and is powered by a supply voltage of 1.8V to 5.5V. The device features a SPI and serial interface, with 256 positions and 257 taps. It is RoHS compliant and available in a rail/Tube packaging with 120 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP4252-103E/MF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP4252-103E/MF technical specifications.
| Package/Case | DFN EP |
| Interface | SPI, Serial |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 256 |
| Number of Taps | 257 |
| Operating Supply Voltage | 5V |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Resistance | 10kR |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Tolerance | 20% |
| RoHS | Compliant |
Download the complete datasheet for Microchip MCP4252-103E/MF to view detailed technical specifications.
