Dual-channel, 100kΩ linear digital potentiometer with 257 taps per channel. Features a 4-wire SPI serial interface for increment/decrement control and non-volatile memory. Operates from 1.8V to 5.5V, with a temperature range of -40°C to 125°C. Packaged in a 14-pin TSSOP (4.5mm width, 5.1mm length, 1.05mm height) for surface mounting. RoHS compliant and lead-free.
PackageTSSOP
Current550uA
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4261-104E/ST technical specifications.
General
Package/Case
TSSOP
Height
1.05mm
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Length
5.1mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Package Quantity
96
Packaging
Rail/Tube
Radiation Hardening
No
Resistance
100kR
RoHS Compliant
Yes
Series
WiperLock™
Supply Current
550uA
Taper
Linear
Tolerance
20%
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4261-104E/ST Datasheet
Download the complete datasheet for Microchip MCP4261-104E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

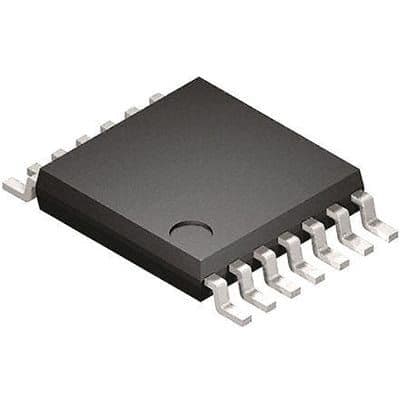

Product Images
