Dual-channel, 5kΩ linear digital potentiometer featuring 256 positions and 257 taps per channel. This non-volatile IC offers SPI and serial 4-wire interface compatibility, operating from 1.8V to 5.5V with a typical 5V supply. Designed for through-hole mounting in a 14-pin PDIP package, it supports a wide temperature range of -40°C to 125°C.
PackagePDIP
Current550uA
Resistance5kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP4261-502E/P technical specifications.
General
Package/Case
PDIP
Height
0.195inch
Interface
SPI, Serial, 4-WIRE
Length
10.16mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Through Hole
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
30
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
550uA
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4261-502E/P Datasheet
Download the complete datasheet for Microchip MCP4261-502E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

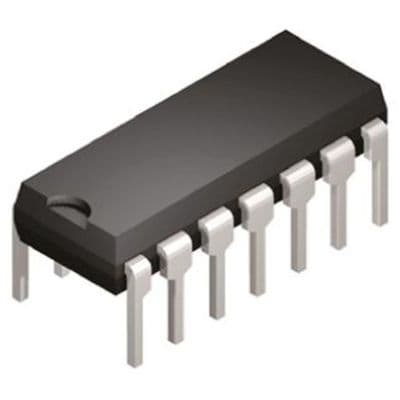

Product Images
