Dual 50kΩ digital potentiometer with 257 positions per element. Features an SPI serial interface for increment/decrement control. Operates from 1.8V to 5.5V with a typical supply current of 550µA. Non-volatile memory stores settings. Packaged in a 14-pin SOIC surface-mount case. RoHS compliant and lead-free.
PackageSOIC
Current550uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4261-503E/SL technical specifications.
General
Package/Case
SOIC
Height
1.25mm
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Length
8.65mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
257
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
57
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
550uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4261-503E/SL Datasheet
Download the complete datasheet for Microchip MCP4261-503E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

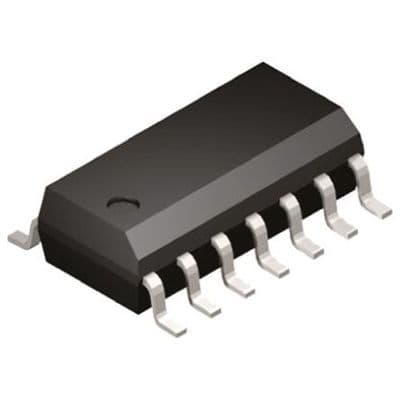

Product Images
