The MCP4261T-104E/ST is a dual 256-position digital potentiometer from Microchip, packaged in a TSSOP-14 plastic package. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device is designed for use with SPI and serial interfaces, with a maximum supply voltage of 5.5V and a minimum supply voltage of 1.8V. The MCP4261T-104E/ST has a supply current of 550uA and a resistance of 100kR, with a tolerance of 20% and a taper of linear.
PackageTSSOP
Current550uA
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4261T-104E/ST technical specifications.
General
| Package/Case | TSSOP |
| Interface | SPI, Serial, 4-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 256 |
| Number of Taps | 257 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 100kR |
| RoHS Compliant | Yes |
| Series | WiperLock™ |
| Supply Current | 550uA |
| Taper | Linear |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4261T-104E/ST Datasheet
Download the complete datasheet for Microchip MCP4261T-104E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

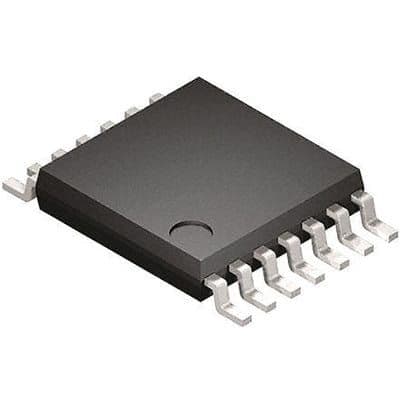

Product Images
