Microchip
MCP4261T-502E/ST
5K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 257 POSITIONS, PDSO14, 4.40 MM, PLASTIC, TSSOP-14
PackageTSSOP
Current550uA
Resistance5kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4261T-502E/ST technical specifications.
General
Package/Case
TSSOP
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Max Operating Temperature
125°C
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
5kR
RoHS Compliant
Yes
Series
WiperLock™
Supply Current
550uA
Taper
Linear
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4261T-502E/ST Datasheet
Download the complete datasheet for Microchip MCP4261T-502E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

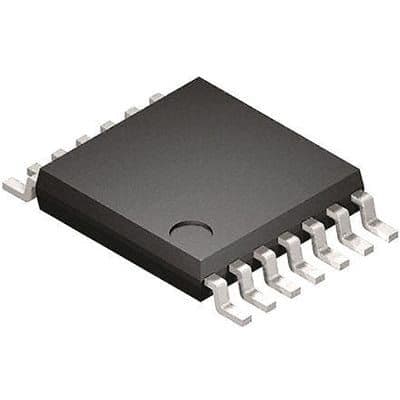

Product Images
