Dual 50kΩ digital potentiometer with 257 positions, featuring an SPI serial interface for increment/decrement control. This surface-mount IC operates from 1.8V to 5.5V, with a typical supply voltage of 5V and a maximum supply current of 550µA. Encased in a 10-lead MSOP package (3mm x 3mm x 0.95mm), it offers non-volatile memory and operates across a temperature range of -40°C to 125°C. This RoHS-compliant component is designed for 257 taps per element.
PackageMSOP
Current550uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4262-503E/UN technical specifications.
General
Package/Case
MSOP
Height
0.95mm
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
257
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
550uA
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4262-503E/UN Datasheet
Download the complete datasheet for Microchip MCP4262-503E/UN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

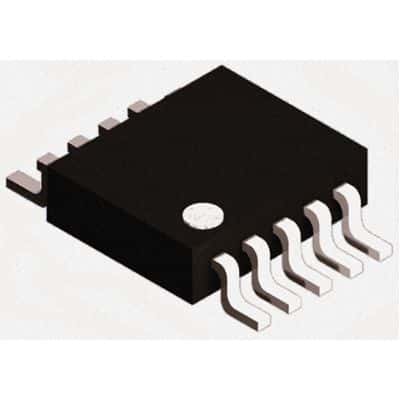

Product Images
