Microchip
MCP4341T-104E/ST
QUAD 100K DIGITAL POTENTIOMETER, 3-WIRE SERIAL CONTROL INTERFACE, 129 POSITIONS, PDSO20, 4.40 MM, LEAD FREE, PLASTIC, TSSOP-20
PackageTSSOP
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4341T-104E/ST technical specifications.
General
Package/Case
TSSOP
Height
0.041inch
Interface
SPI, Serial, 4-WIRE
Length
0.259inch
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Positions
129
Number of Taps
129
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
100kR
RoHS Compliant
Yes
Series
WiperLock™
Taper
Linear
Tolerance
20%
Width
0.177inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4341T-104E/ST Datasheet
Download the complete datasheet for Microchip MCP4341T-104E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

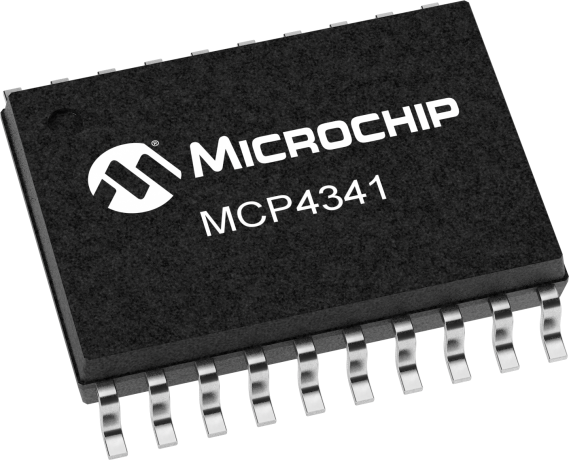

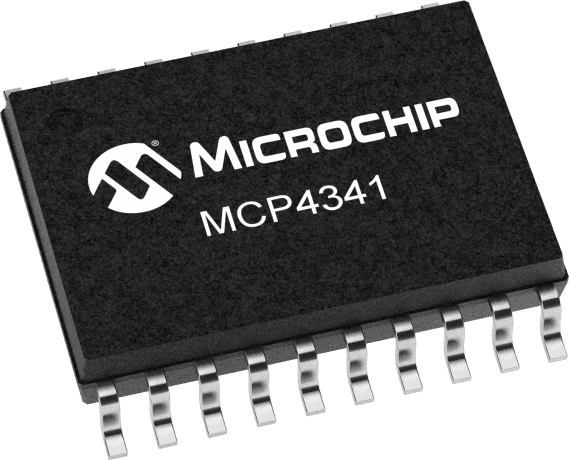

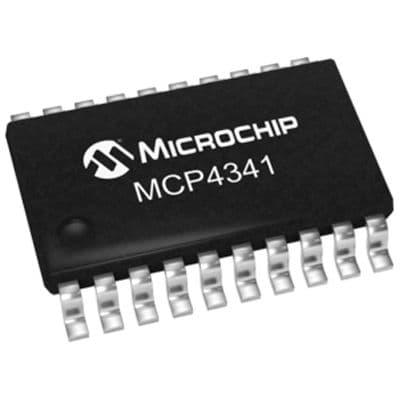

Product Images
