Quad 10kΩ digital potentiometer with 129 positions and linear taper. Features a 3-wire serial control interface, operating from 2.7V to 5.5V with a maximum supply current of 450µA. This surface mount component, housed in a 14-pin TSSOP package (4.40mm width, 1.05mm height, 5.1mm length), offers non-volatile memory and a wide operating temperature range of -40°C to 125°C.
PackageTSSOP
Current450uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4342-103E/ST technical specifications.
General
| Package/Case | TSSOP |
| Height | 1.05mm |
| Interface | SPI, Serial, 4-WIRE |
| Length | 5.1mm |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Positions | 129 |
| Number of Taps | 129 |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Series | WiperLock™ |
| Supply Current | 450uA |
| Taper | Linear |
| Tolerance | 20% |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4342-103E/ST Datasheet
Download the complete datasheet for Microchip MCP4342-103E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

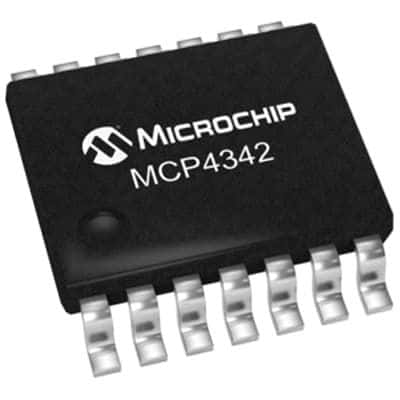

Product Images
