Automotive-grade digital potentiometer featuring 50kΩ resistance and 257 positions, ideal for precise analog signal control. This linear taper device offers a 20% resistance tolerance and operates over a wide temperature range from -40°C to 125°C. Interface options include SPI and 4-wire serial communication, supporting a supply voltage range of 2.7V to 5.5V. The component is housed in a compact 20-pin TSSOP package, suitable for surface mounting.
PackageTSSOP
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4361-503E/ST technical specifications.
General
Package/Case
TSSOP
Height
1.05mm
Interface
SPI, Serial, 4-WIRE
Lead Free
Lead Free
Length
6.6mm
Max Operating Temperature
125°C
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Positions
257
Number of Taps
257
Package Quantity
74
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Series
WiperLock™
Taper
Linear
Tolerance
20%
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4361-503E/ST Datasheet
Download the complete datasheet for Microchip MCP4361-503E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

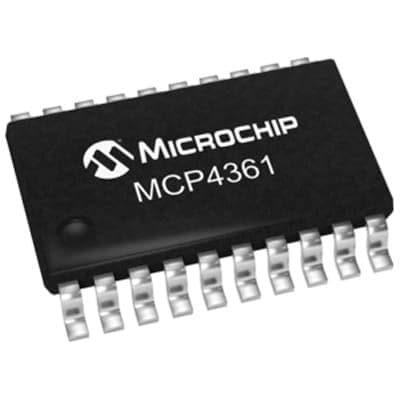

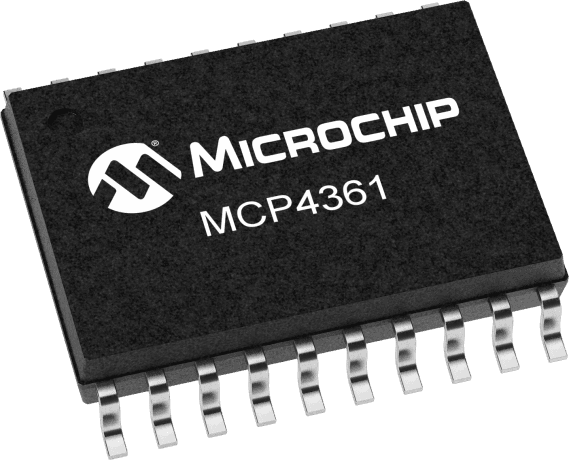

Product Images
