Microchip
MCP4361T-104E/ML
QUAD 100K DIGITAL POTENTIOMETER, 3-WIRE SERIAL CONTROL INTERFACE, 257 POSITIONS, PQCC20, 4 X 4 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, QFN-20
PackageQFN
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4361T-104E/ML technical specifications.
General
Package/Case
QFN
Height
0.95mm
Interface
SPI, Serial, 4-WIRE
Length
4mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Positions
257
Number of Taps
257
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
100kR
RoHS Compliant
Yes
Series
WiperLock™
Taper
Linear
Tolerance
20%
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4361T-104E/ML Datasheet
Download the complete datasheet for Microchip MCP4361T-104E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

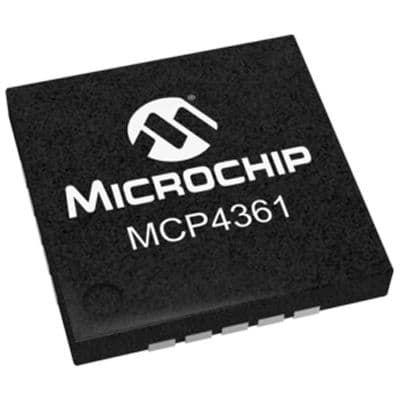

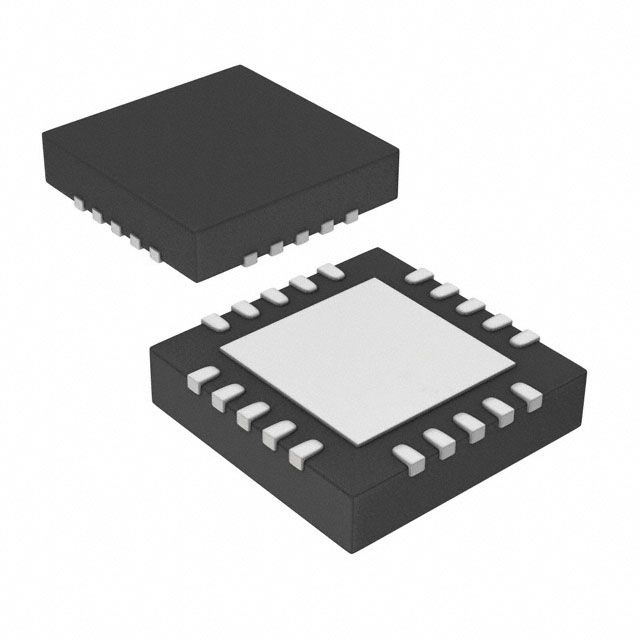

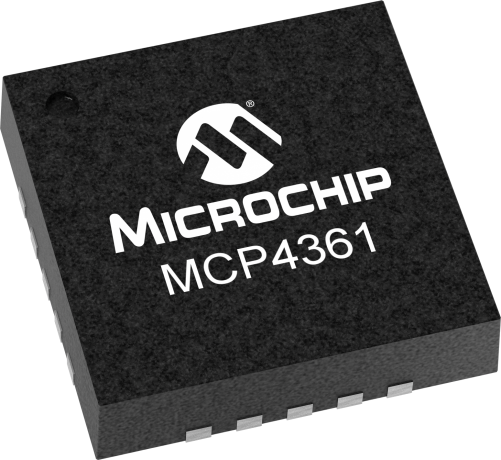

Product Images
