Technical Specifications
Microchip MCP4361T-503E/ML technical specifications.
General
| Package/Case | QFN |
| Height | 0.95mm |
| Interface | SPI, Serial, 4-WIRE |
| Length | 4mm |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Positions | 257 |
| Number of Taps | 257 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 50kR |
| RoHS Compliant | Yes |
| Series | WiperLock™ |
| Taper | Linear |
| Tolerance | 20% |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4361T-503E/ML Datasheet
Download the complete datasheet for Microchip MCP4361T-503E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

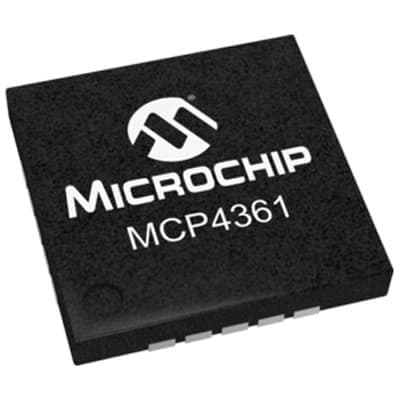

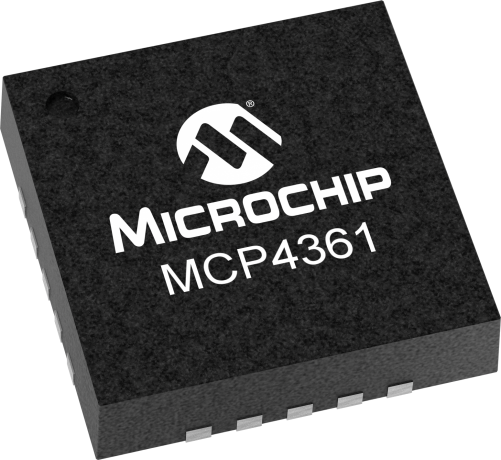

Product Images
