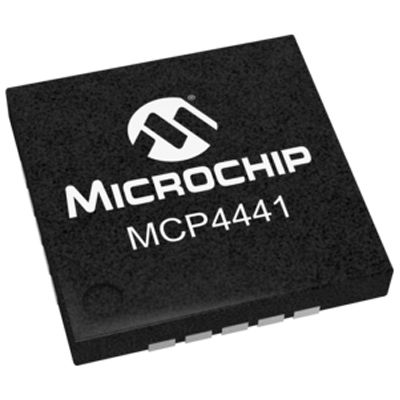

Quad digital potentiometer featuring 129 positions and 50kR resistance with 20% tolerance. Operates from a 2.7V to 5.5V supply, consuming 600uA. Interface options include I2C and 2-wire serial control. Packaged in a 4mm x 4mm QFN with a 1mm height, suitable for surface mounting. Non-volatile memory ensures configuration retention.
PackageQFN
Current600uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4441-503E/ML technical specifications.
General
Package/Case
QFN
Height
1mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
4mm
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Positions
129
Number of Taps
129
Package Quantity
91
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
600uA
Width
4mm
Compliance
RoHS
Compliant
