Quad 50k digital potentiometer featuring a 2-wire serial control interface and 129 discrete positions. This surface-mount IC operates from a 2.7V to 5.5V supply, with a maximum operating temperature of 125°C. It incorporates non-volatile EEPROM memory and is housed in a 14-pin TSSOP package.
PackageTSSOP
Current600uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4442-503E/ST technical specifications.
General
Package/Case
TSSOP
Height
1mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
125°C
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
4
Number of Elements
4
Number of Positions
129
Number of Taps
129
Package Quantity
96
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
600uA
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4442-503E/ST Datasheet
Download the complete datasheet for Microchip MCP4442-503E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

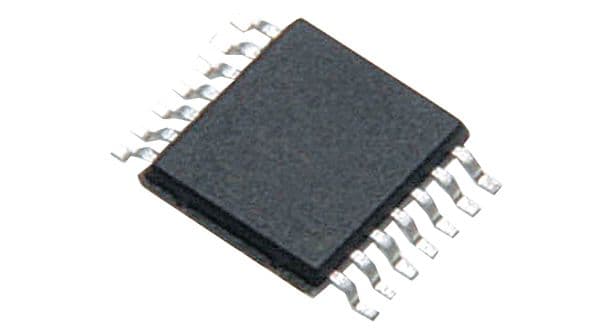

Product Images
