128-position digital potentiometer with 50kR resistance and 20% tolerance. Features an I2C, Serial, 2-Wire interface for increment/decrement control. Operates from 1.8V to 5.5V with a typical supply current of 2.5uA. Non-volatile memory ensures state retention. Packaged in a 3mm x 3mm x 0.95mm MSOP surface-mount package. Suitable for operation between -40°C and 125°C.
PackageMSOP
Current2.5uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4542-503E/MS technical specifications.
General
Package/Case
MSOP
Height
0.95mm
Interface
I2C, Serial, 2-Wire
Length
3mm
Max Operating Temperature
125°C
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
2.5uA
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4542-503E/MS Datasheet
Download the complete datasheet for Microchip MCP4542-503E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

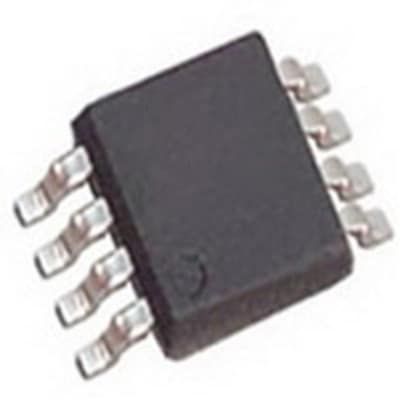

Product Images
