PackageDFN EP
Current2.5uA
Resistance100kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4551T-104E/MF technical specifications.
General
Package/Case
DFN EP
Interface
I2C, Serial, 2-Wire
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
100kR
RoHS Compliant
Yes
Supply Current
2.5uA
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4551T-104E/MF Datasheet
Download the complete datasheet for Microchip MCP4551T-104E/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

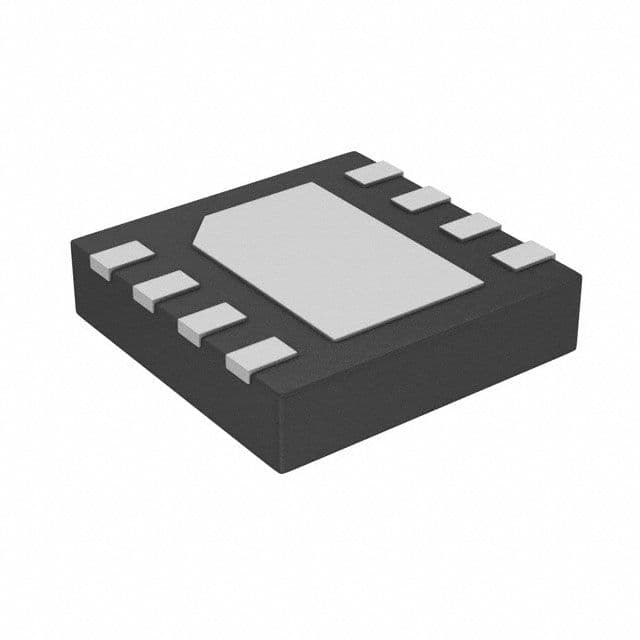

Product Images
