Dual-channel, 10kΩ linear digital potentiometer with 128 positions and 129 taps. Features I2C and 2-wire serial interface, operating from 1.8V to 5.5V with a typical 5V supply. This volatile and non-volatile memory component is housed in a 14-pin TSSOP package, suitable for surface mounting. Offers a wide operating temperature range of -40°C to 125°C and a low supply current of 2.5µA.
PackageTSSOP
Current2.5uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4631-103E/ST technical specifications.
General
Package/Case
TSSOP
Height
1mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Volatile, , Non-Volatile
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
96
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
2.5uA
Taper
Linear
Termination
SMD/SMT
Tolerance
20%
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4631-103E/ST Datasheet
Download the complete datasheet for Microchip MCP4631-103E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

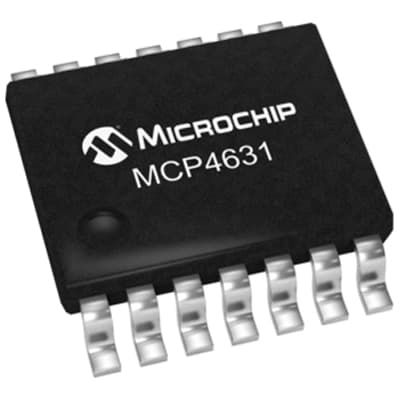

Product Images
