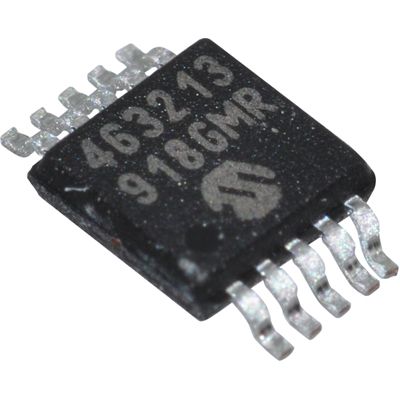

Dual-channel digital potentiometer featuring 128 positions and a 10kΩ resistance. Operates with I2C and 2-wire serial interfaces, supporting supply voltages from 1.8V to 5.5V. This surface-mount component is housed in a compact 3mm x 3mm x 0.85mm MSOP package. It offers a wide operating temperature range of -40°C to 125°C and a low supply current of 2.5µA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP4632-103E/UN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP4632-103E/UN technical specifications.
| Package/Case | MSOP |
| Height | 0.85mm |
| Interface | I2C, Serial, 2-Wire |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 128 |
| Number of Taps | 129 |
| Operating Supply Voltage | 5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Supply Current | 2.5uA |
| Width | 3mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip MCP4632-103E/UN to view detailed technical specifications.
