Microchip
MCP4642T-502E/MF
DUAL 5K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 129 POSITIONS, PDSO10, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-10
PackageDFN
Current2.5uA
Resistance5kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4642T-502E/MF technical specifications.
General
Package/Case
DFN
Interface
I2C, Serial, 2-Wire
Max Operating Temperature
125°C
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
128
Number of Taps
129
Operating Supply Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Resistance
5kR
RoHS Compliant
Yes
Supply Current
2.5uA
Taper
Linear
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4642T-502E/MF Datasheet
Download the complete datasheet for Microchip MCP4642T-502E/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

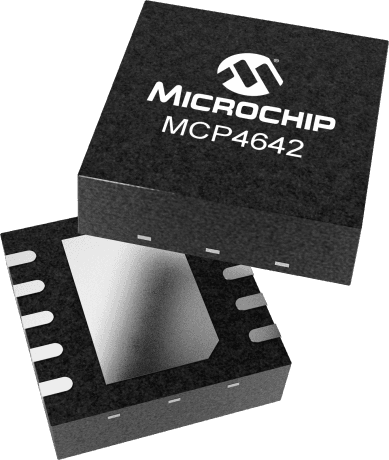

Product Images
