Dual-channel, 10kΩ linear digital potentiometer with 256 positions. Features I2C and 2-wire serial interface, operating from 1.8V to 5.5V with a typical 5V supply. Surface mount TSSOP package with volatile memory, suitable for -40°C to 125°C operation. RoHS compliant and lead-free.
PackageTSSOP
Current2.5uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4651T-103E/ST technical specifications.
General
Package/Case
TSSOP
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
10kR
RoHS Compliant
Yes
Supply Current
2.5uA
Taper
Linear
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4651T-103E/ST Datasheet
Download the complete datasheet for Microchip MCP4651T-103E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

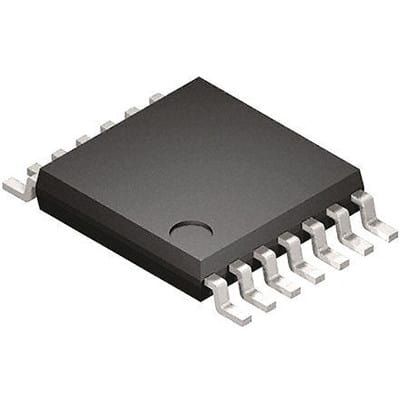

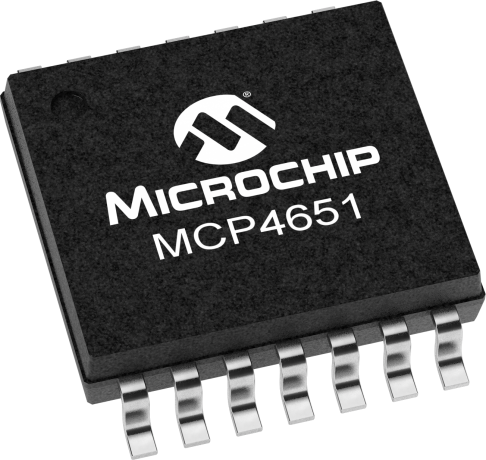

Product Images
