Dual-channel, 10kΩ linear digital potentiometer with 256 positions and 257 taps. Features non-volatile memory and operates via I2C or 2-wire serial interface. This surface-mount component is housed in a 14-pin TSSOP package, measuring 5mm x 4.4mm x 1mm, with an operating temperature range of -40°C to 125°C and a maximum supply voltage of 5.5V. RoHS and lead-free compliant.
PackageTSSOP
Current2.5uA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4661-103E/ST technical specifications.
General
| Package/Case | TSSOP |
| Height | 1mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 256 |
| Number of Taps | 257 |
| Operating Supply Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Supply Current | 2.5uA |
| Taper | Linear |
| Tolerance | 20% |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4661-103E/ST Datasheet
Download the complete datasheet for Microchip MCP4661-103E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

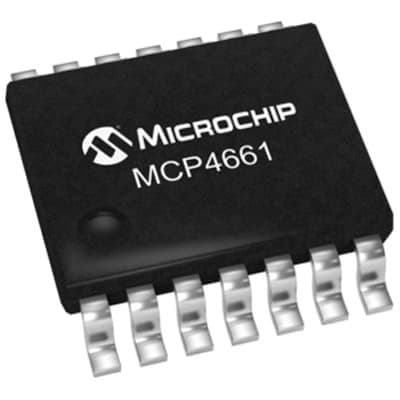

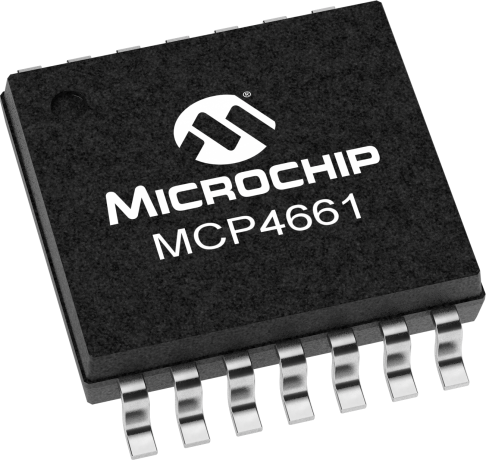

Product Images
