Dual-channel, 50kΩ linear digital potentiometer with 256 positions. Features non-volatile memory and a 2-wire serial interface. Operates from 1.8V to 5.5V with a typical supply current of 2.5µA. Packaged in a 14-pin TSSOP with dimensions of 5.1mm x 4.5mm x 1.05mm. Suitable for surface mounting and operates across a temperature range of -40°C to 125°C.
PackageTSSOP
Current2.5uA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4661-503E/ST technical specifications.
General
Package/Case
TSSOP
Height
1.05mm
Interface
I2C, Serial, 2-Wire
Length
5.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
96
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
Resistance Tolerance
20%
RoHS Compliant
Yes
Supply Current
2.5uA
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4661-503E/ST Datasheet
Download the complete datasheet for Microchip MCP4661-503E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

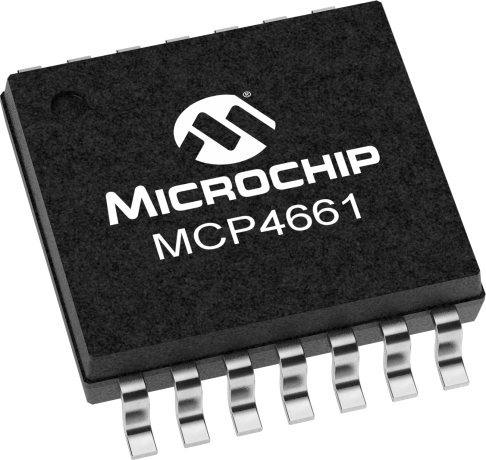

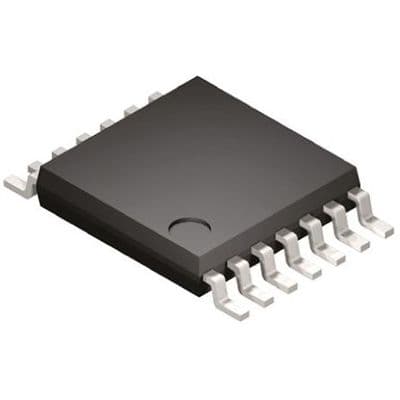

Product Images
