Dual 5kΩ linear digital potentiometer with 257 taps and 256 positions, featuring an I2C and 2-wire serial interface. This surface-mount integrated circuit operates from 1.8V to 5.5V, with a typical supply current of 2.5µA. It offers non-volatile memory and a wide operating temperature range of -40°C to 125°C. Packaged in a VQFN, this RoHS compliant component is ideal for precise analog control applications.
PackageVQFN
Current2.5uA
Resistance5kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4661T-502E/ML technical specifications.
General
Package/Case
VQFN
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Type
Non-Volatile,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
257
Operating Supply Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Resistance
5kR
RoHS Compliant
Yes
Supply Current
2.5uA
Taper
Linear
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4661T-502E/ML Datasheet
Download the complete datasheet for Microchip MCP4661T-502E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

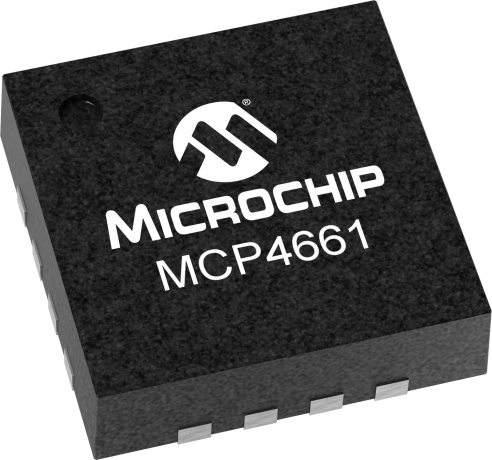

Product Images
