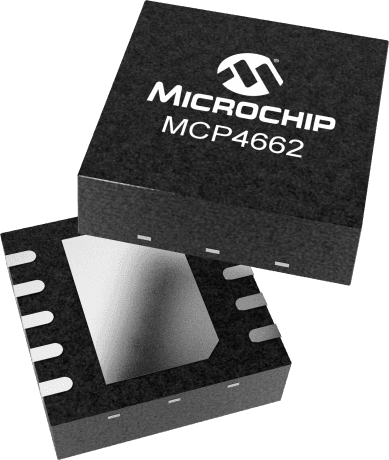

Dual-channel, 50kΩ digital potentiometer IC featuring a linear taper and 256 positions (257 taps). This surface-mount component operates with a 1.8V to 5.5V supply voltage and utilizes an I2C/2-wire serial interface. The non-volatile memory and low 2.5µA operating current make it suitable for a wide temperature range of -40°C to 125°C. Packaged in a compact 3mm x 3mm DFN with a height of 0.88mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP4662T-503E/MF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Height | 0.88mm |
| Interface | I2C, Serial, 2-Wire |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Memory Type | Non-Volatile, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Positions | 256 |
| Number of Taps | 257 |
| Operating Supply Current | 2.5uA |
| Operating Supply Voltage | 5V |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 50kR |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Taper | Linear |
| Tolerance | 20% |
| Width | 3mm |
| RoHS | Compliant |
