8-bit, single-channel, unipolar voltage-output digital-to-analog converter (DAC) with I2C and serial 2-wire interface. Features include 0.907 LSB integral nonlinearity, 5.2 LSB full-scale error, and a 6µs settling time. Operates from a 2.7V to 5.5V supply, with a maximum supply current of 210µA. Packaged in a 6-pin DFN, this surface-mount component is RoHS compliant and operates across a -40°C to 125°C temperature range.
PackageDFN
Current210uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4706A0T-E/MAY technical specifications.
General
Package/Case
DFN
Full Scale Error
5.2LSB
Height
0.85mm
Integral Nonlinearity (INL)
0.907LSB
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.098W
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Settling Time
6us
Supply Current
210uA
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4706A0T-E/MAY Datasheet
Download the complete datasheet for Microchip MCP4706A0T-E/MAY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

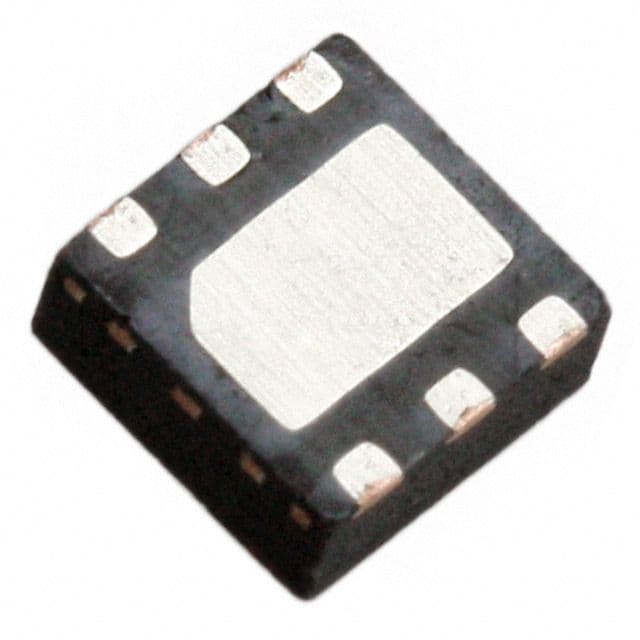

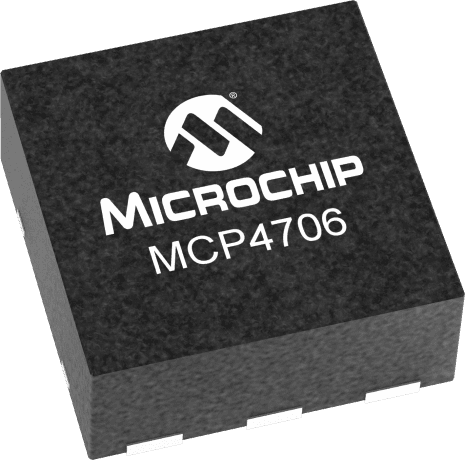

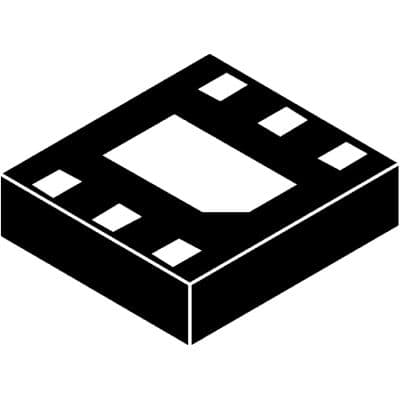

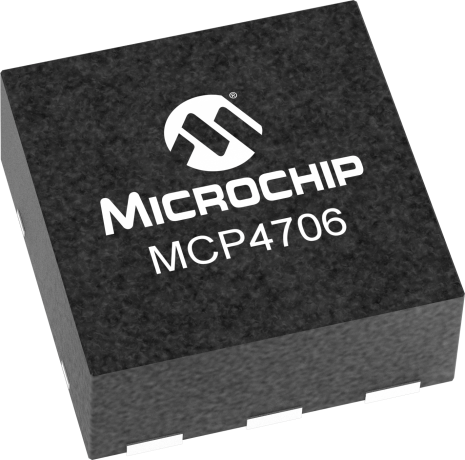

Product Images
