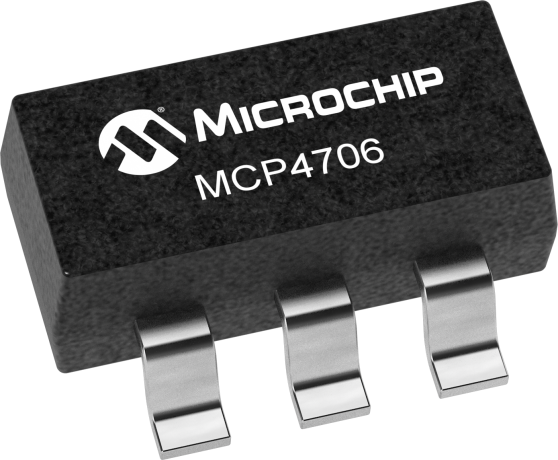

8-bit Digital-to-Analog Converter (DAC) with a single channel and bipolar output. Features I2C and serial interface, 6µs settling time, and 0.907LSB Integral Nonlinearity (INL). Operates from a 2.7V to 5.5V supply voltage with a maximum power dissipation of 452mW. Housed in a compact SOT-23-6 surface mount package, measuring 3.1mm x 1.8mm x 1.3mm. RoHS compliant and lead-free.
PackageSOT-23-6
Current210uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4706A2T-E/CH technical specifications.
General
Package/Case
SOT-23-6
Differential Output
No
Full Scale Error
5.2LSB
Height
1.3mm
Integral Nonlinearity (INL)
0.907LSB
Interface
I2C, Serial
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
452mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Output Polarity
Bipolar
Output Type
Voltage
Package Quantity
3000
Packaging
Tape and Reel
Resolution
8b
RoHS Compliant
Yes
Settling Time
6us
Supply Current
210uA
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4706A2T-E/CH Datasheet
Download the complete datasheet for Microchip MCP4706A2T-E/CH to view detailed technical specifications.
