8-bit, 2-channel Digital-to-Analog Converter (DAC) with SPI, Serial, 3-Wire interface. Features a 2.048V reference voltage, 4.5µs settling time, and 820µV input offset voltage. Operates from a 2.7V to 5.5V supply voltage, with a typical supply current of 415µA. Housed in an 8-pin MSOP package for surface mounting, this RoHS compliant component offers bipolar voltage output and an integral nonlinearity of 1 LSB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP4802-E/MS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

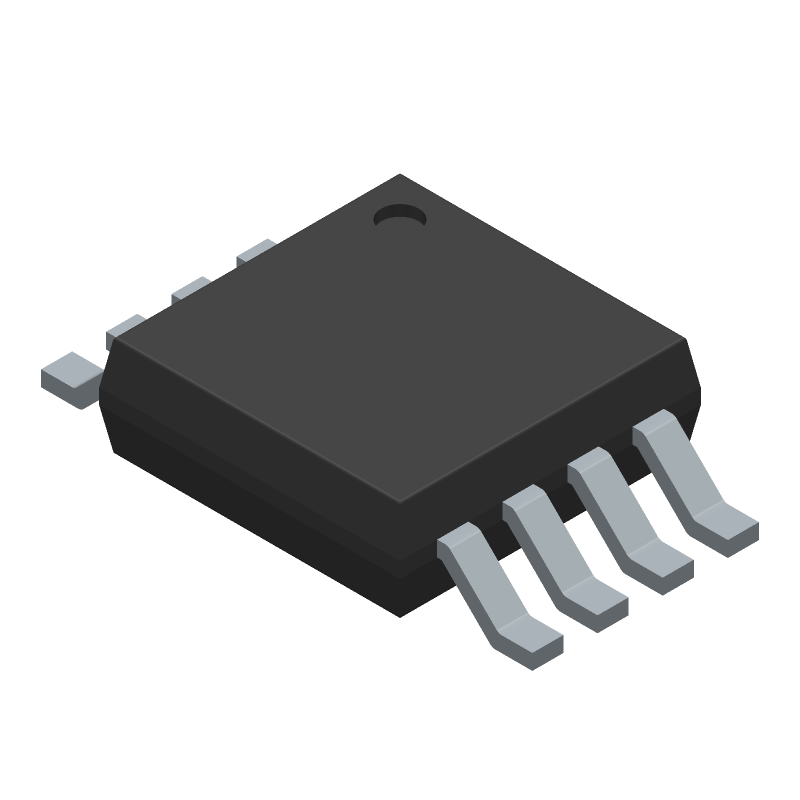

Microchip MCP4802-E/MS technical specifications.
| Package/Case | MSOP |
| Differential Output | No |
| Height | 0.95mm |
| Input Offset Voltage (Vos) | 820uV |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 2 |
| Number of Converters | 1 |
| Number of D/A Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 5V |
| Output Polarity | Bipolar |
| Output Type | Voltage |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 2.048V |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Settling Time | 4.5us |
| Supply Current | 415uA |
| Width | 3mm |
| RoHS | Compliant |
