12-bit, 2-channel digital-to-analog converter (DAC) with SPI serial interface. Features unipolar and bipolar output polarity, voltage output type, and a 2.048V reference voltage. Operates from a 2.7V to 5.5V supply voltage with a typical supply current of 415uA. Integral nonlinearity is 12 LSB, with an input offset voltage of 820uV. Settling time is 4.5us. Packaged in a through-hole 8-pin PDIP with dimensions of 9.4mm length, 6.35mm width, and 3.3mm height.
PackagePDIP
Current415uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP4822-E/P technical specifications.
General
Package/Case
PDIP
Height
3.3mm
Input Offset Voltage (Vos)
820uV
Integral Nonlinearity (INL)
12LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Lead Free
Length
9.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of DAC Channels
2
Operating Supply Voltage
5V
Output Polarity
Unipolar, Bipolar
Output Type
Voltage
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
2.048V
Resolution
12b
RoHS Compliant
Yes
Settling Time
4.5us
Supply Current
415uA
Supply Type
Single
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP4822-E/P Datasheet
Download the complete datasheet for Microchip MCP4822-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

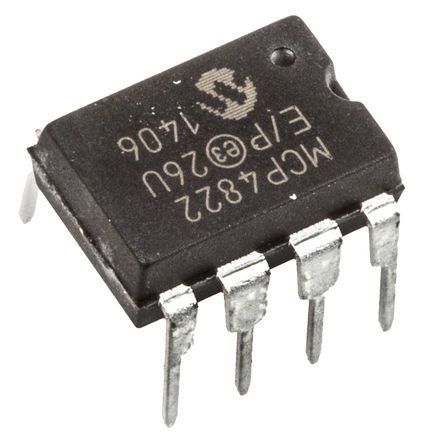

Product Images
