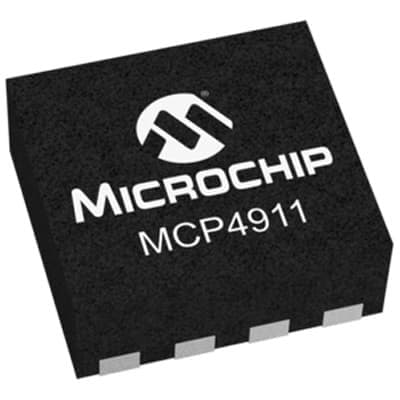

10-bit, single-channel Digital-to-Analog Converter (DAC) featuring a resistor-string architecture. This surface-mount component offers a 10b resolution with a 1LSB full-scale error and 3.5LSB integral nonlinearity. It operates from a 2.7V to 6.5V supply, with a typical operating voltage of 5.5V and a low supply current of 175uA. The DAC supports SPI and 3-wire serial interfaces, providing a bipolar voltage output. Designed for automotive applications, it operates across a -40°C to 125°C temperature range and is housed in a compact 2mm x 3mm x 0.95mm DFN package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP4911-E/MC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Differential Output | No |
| Full Scale Error | 1LSB |
| Height | 0.95mm |
| Input Offset Voltage (Vos) | 820uV |
| Integral Nonlinearity (INL) | 3.5LSB |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 5.5V |
| Output Polarity | Bipolar |
| Output Type | Voltage |
| Package Quantity | 150 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Settling Time | 4.5us |
| Supply Current | 175uA |
| Width | 3mm |
| RoHS | Compliant |
