12-bit, single-channel digital-to-analog converter (DAC) with SPI serial interface. Features unipolar/bipolar output polarity, voltage output type, and a settling time of 4.5µs. Operates from a 2.7V to 5.5V supply voltage with a nominal supply current of 175µA. Housed in a lead-free PDIP package for through-hole mounting, with dimensions of 9.4mm length, 6.35mm width, and 3.3mm height. Suitable for automotive applications with a maximum operating temperature of 125°C.
Sign in to ask questions about the Microchip MCP4921-E/P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

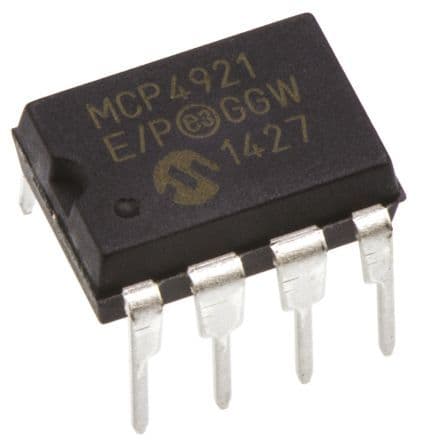

Microchip MCP4921-E/P technical specifications.
| Package/Case | PDIP |
| Height | 3.3mm |
| Input Offset Voltage (Vos) | 820uV |
| Integral Nonlinearity (INL) | 12LSB |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 9.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Nominal Supply Current | 175uA |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Polarity | Unipolar, Bipolar |
| Output Type | Voltage |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Settling Time | 4.5us |
| Supply Type | Single |
| Width | 6.35mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip MCP4921-E/P to view detailed technical specifications.
