12-bit, single-channel Digital-to-Analog Converter (DAC) with SPI serial interface. Features a 4.5µs settling time and a voltage output. Operates from a 2.7V to 5.5V supply, with a maximum operating temperature of 125°C. Packaged in a lead-free, 8-pin SOIC surface mount package.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP4921T-E/SN technical specifications.
General
| Package/Case | SOIC |
| Differential Output | No |
| Input Offset Voltage (Vos) | 820uV |
| Integral Nonlinearity (INL) | 12LSB |
| Interface | SPI, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Output Type | Voltage |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Settling Time | 4.5us |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP4921T-E/SN Datasheet
Download the complete datasheet for Microchip MCP4921T-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

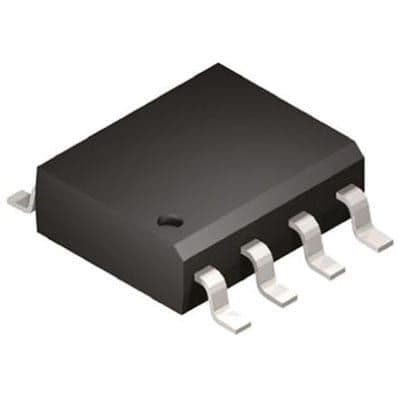

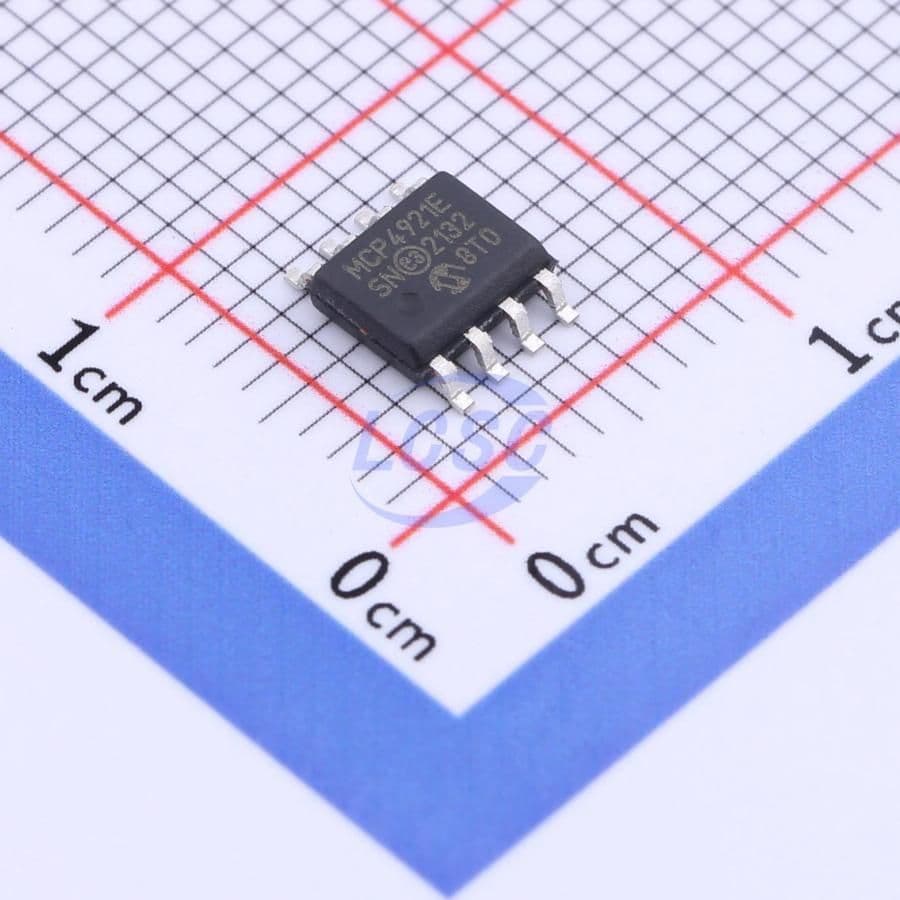

Product Images
