Dual operational amplifier featuring Rail-to-Rail input/output for enhanced dynamic range. This general-purpose amplifier offers a 1MHz bandwidth and a 0.6V/µs slew rate, ideal for low-power applications. Operating from 1.8V to 6V, it provides a 23mA output current per channel and boasts a 112dB voltage gain. The 8-pin SOIC package facilitates surface mounting, with a low 100µA supply current.
PackageSOIC
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6002-I/SN technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOIC
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
1MHz
Height
1.25mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
4.5mV
Input Offset Voltage-Max
4.5mV
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Voltage
5.5V
Output Current
23mA
Output Current per Channel
23mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
86dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
100uA
Technology
CMOS
Unity Gain Bandwidth Product
1MHz
Voltage Gain
112dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6002-I/SN Datasheet
Download the complete datasheet for Microchip MCP6002-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

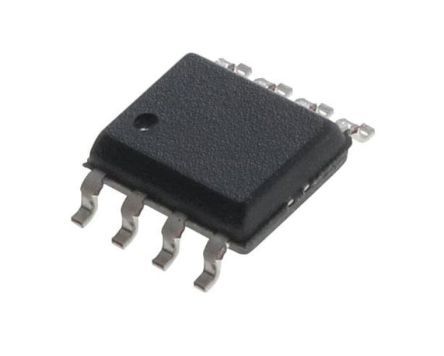

Product Images
