Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.6V/µs slew rate. This general-purpose CMOS op-amp offers a 4.5mV maximum input offset voltage and 1pA input bias current. It operates from a 1.8V to 6V supply range with a typical 100µA supply current. The device provides 60dB common mode rejection ratio and 86dB power supply rejection ratio, with 23mA output current per channel. Packaged in an MSOP-8 surface mount configuration, it is RoHS compliant and operates from -40°C to 125°C.
PackageMSOP
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6002T-E/MS technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
MSOP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
1MHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
4.5mV
Input Offset Voltage-Max
4.5mV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
100uA
Operating Supply Voltage
5.5V
Output Current
23mA
Output Current per Channel
23mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
86dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
100uA
Technology
CMOS
Unity Gain Bandwidth Product
1MHz
Voltage Gain
112dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6002T-E/MS Datasheet
Download the complete datasheet for Microchip MCP6002T-E/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

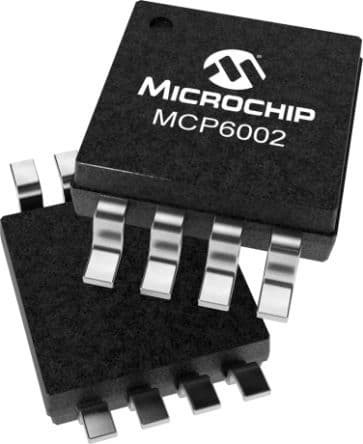

Product Images
