MCP601T-E/OT

Datasheet

Op Amp, 2.8MHz BW, 6V, 1-Ch, SOT-23, CMOS

Microchip

MCP601T-E/OT

Name: MCP601T-E/OT Microchip
Brand: Microchip
SKU: MCP601T-E/OT

Op Amp, 2.8MHz BW, 6V, 1-Ch, SOT-23, CMOS

Single operational amplifier IC featuring Rail-to-Rail output and a 2.8MHz gain bandwidth product. This general-purpose, CMOS amplifier operates from a 2.7V to 6V supply, with a typical supply current of 230µA. Key specifications include a 2.3V/µs slew rate, 115dB voltage gain, and 75dB CMRR. Packaged in a 5-pin SOT-23 surface-mount configuration, it offers a 1pA input bias current and 2mV input offset voltage, suitable for automotive applications with a wide operating temperature range of -40°C to 125°C.

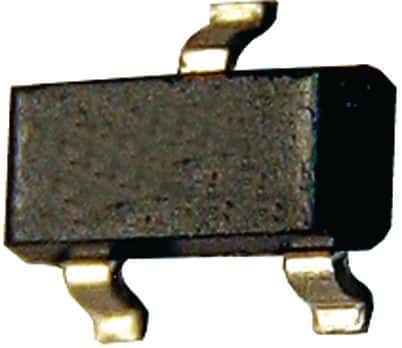

PackageSOT-23

Current230uA

MountingSurface Mount

Quick Jump:

Chat with Datasheet

Technical Specifications

Microchip MCP601T-E/OT technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	2.8MHz
Package/Case	SOT-23
Common Mode Rejection Ratio	75dB
Gain Bandwidth Product	2.8MHz
Height	1.3mm
Input Bias Current	1pA
Input Offset Voltage (Vos)	2mV
Input Offset Voltage-Max	2mV
Lead Free	Lead Free
Length	3.1mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	6V
Min Supply Voltage	2.7V
Mount	Surface Mount
Number of Amplifiers	1
Number of Channels	1
Number of Circuits	1
Number of Elements	1
Operating Supply Voltage	5.5V
Output Current	22mA
Package Quantity	3000
Packaging	Tape and Reel
Power Supply Rejection Ratio (PSRR)	80dB
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	2.3V/µs
Slew Rate-Nom	2.3V/µs
Supply Current	230uA
Technology	CMOS
Unity Gain Bandwidth Product	2.8MHz
Voltage Gain	115dB
Width	1.8mm
