Single-channel, general-purpose operational amplifier featuring a 2.8MHz gain bandwidth product and 2.3V/µs slew rate. This CMOS device offers a low input bias current of 1pA and an input offset voltage of 2mV. Operating from a 2.7V to 6V supply, it provides a 75dB CMRR and 80dB PSRR, with a 230µA operating supply current. Packaged in a surface-mount TSSOP, it delivers 22mA output current per channel and operates across a -40°C to 125°C temperature range.
PackageTSSOP
Current230uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP601T-E/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TSSOP
Common Mode Rejection Ratio
75dB
Gain Bandwidth Product
2.8MHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
230uA
Operating Supply Voltage
5.5V
Output Current
22mA
Output Current per Channel
22mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
2.3V/µs
Supply Current
230uA
Technology
CMOS
Unity Gain Bandwidth Product
2.8MHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP601T-E/ST Datasheet
Download the complete datasheet for Microchip MCP601T-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

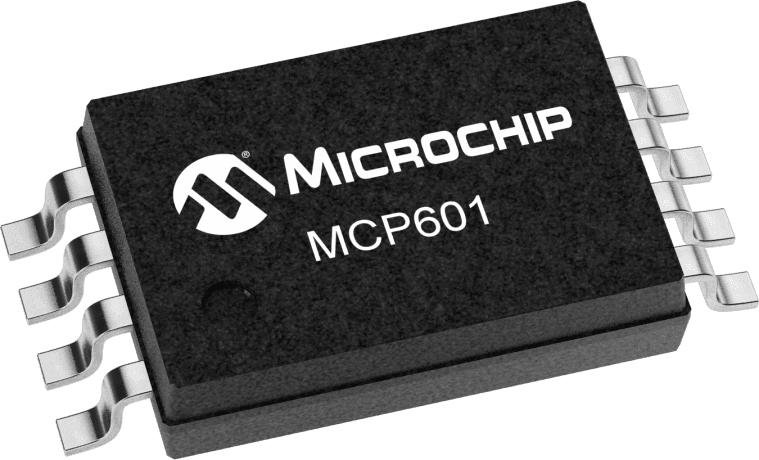

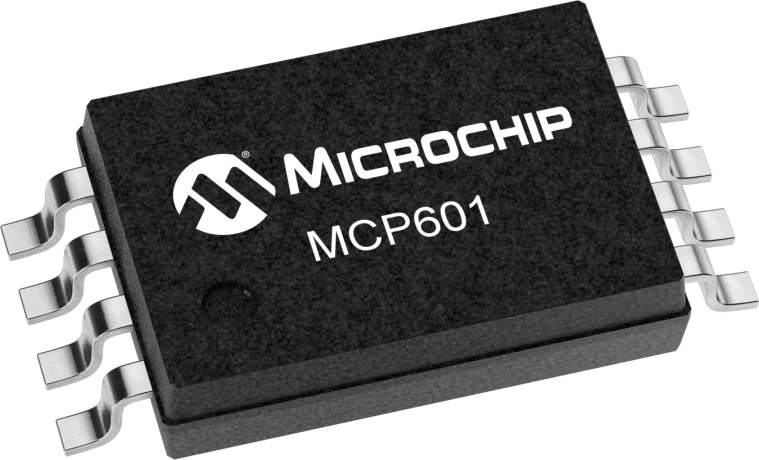

Product Images
