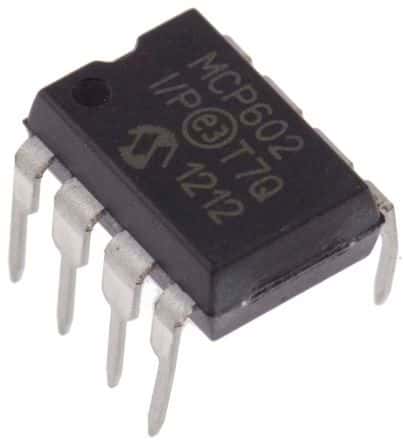

MCP602-I/P

Datasheet

Microchip

MCP602-I/P

Name: MCP602-I/P Microchip
Brand: Microchip
SKU: MCP602-I/P
Price: 1.204 USD
Availability: InStock

Dual Op Amp, 2.8MHz BW, 6V, 230uA, PDIP

Dual operational amplifier featuring a 2.8MHz gain bandwidth product and 2.3V/µs slew rate. This general-purpose amplifier operates from a 2.7V to 6V supply range with a typical 230µA quiescent current. It offers rail-to-rail output capability, a 75dB common mode rejection ratio, and 80dB power supply rejection ratio. The component is housed in an 8-pin PDIP package suitable for through-hole mounting, with a temperature range of -40°C to 85°C.

PackagePDIP

Current230uA

MountingThrough Hole

Quick Jump:

Pricing & Availability

Distributor	Stock	Min Qty	9+	18+	Package Type	Action
Quest	32 In Stock	9	1.204	0.7525	-	View

Chat with Datasheet

Technical Specifications

Microchip MCP602-I/P technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	2.8MHz
Package/Case	PDIP
Common Mode Rejection Ratio	75dB
Gain Bandwidth Product	2.8MHz
Height	3.3mm
Input Bias Current	1pA
Input Offset Voltage (Vos)	2mV
Input Offset Voltage-Max	3mV
Lead Free	Lead Free
Length	9.27mm
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	6V
Min Supply Voltage	2.7V
Mount	Through Hole
Number of Amplifiers	2
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Operating Supply Current	230uA
Operating Supply Voltage	5.5V
Output Current	22mA
Output Current per Channel	22mA
Package Quantity	60
Packaging	Rail/Tube
Power Supply Rejection Ratio (PSRR)	80dB
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	2.3V/µs
Slew Rate-Nom	2.3V/µs
Supply Current	230uA
Technology	CMOS
Unity Gain Bandwidth Product	2.8MHz
Voltage Gain	115dB
Width	6.35mm
