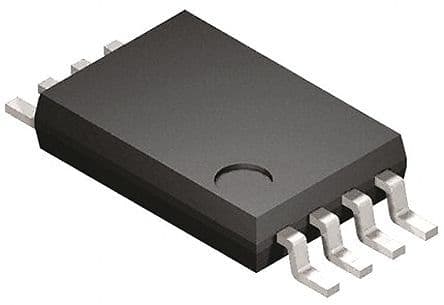

MCP602-I/ST

Dual Op-Amp, 2.8MHz BW, 2mV Vos, TSSOP-8, CMOS

Dual operational amplifier featuring a 2.8MHz bandwidth and 2.3V/µs slew rate. This general-purpose amplifier offers a 2mV input offset voltage and 1pA input bias current, with a 75dB CMRR and 80dB PSRR. Operating from 2.7V to 6V, it consumes 230µA supply current and delivers 22mA output current per channel. Packaged in a surface-mount TSSOP-8, this CMOS technology component is RoHS compliant.

Frequency10kHz

PackageTSSOP

Current230uA

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip MCP602-I/ST technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	2.8MHz
Package/Case	TSSOP
Common Mode Rejection Ratio	75dB
Gain Bandwidth Product	2.8MHz
Height	1.05mm
Input Bias Current	1pA
Input Offset Voltage (Vos)	2mV
Length	5.1mm
Max Frequency	10kHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	6V
Min Supply Voltage	2.7V
Mount	Surface Mount
Number of Amplifiers	2
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Operating Supply Current	230uA
Operating Supply Voltage	5.5V
Output Current	22mA
Output Current per Channel	22mA
Package Quantity	100
Packaging	Rail/Tube
Power Supply Rejection Ratio (PSRR)	80dB
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	2.3V/µs
Supply Current	230uA
Technology	CMOS
Unity Gain Bandwidth Product	2.8MHz
Voltage Gain	115dB
Width	4.5mm
