General purpose operational amplifier featuring a 10MHz bandwidth and 7V/µs slew rate. This single-channel CMOS op-amp offers a low input offset voltage of 250µV and a high voltage gain of 110dB. Designed for through-hole mounting in a PDIP-8 package, it operates from a 2.5V to 5.5V supply and provides 22mA output current. With a 1mA supply current and 125°C maximum operating temperature, this RoHS compliant component is ideal for various analog circuit applications.
PackagePDIP
Current1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP6021-E/P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
10MHz
Package/Case
PDIP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
10MHz
Harmonic Distortion
0.00053%
Height
0.195inch
Input Bias Current
1pA
Input Offset Voltage (Vos)
250uV
Lead Free
Lead Free
Length
0.4inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1mA
Output Current
22mA
Output Current per Channel
30mA
Package Quantity
60
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
74dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
7V/µs
Supply Current
1mA
Technology
CMOS
Unity Gain Bandwidth Product
10MHz
Voltage Gain
110dB
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6021-E/P Datasheet
Download the complete datasheet for Microchip MCP6021-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

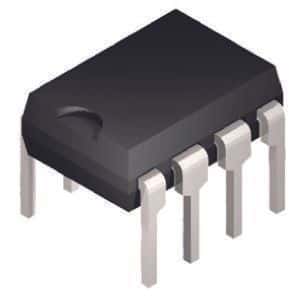

Product Images
