Dual operational amplifier featuring a 10MHz bandwidth and 7V/µs slew rate. This general-purpose op-amp offers a low input offset voltage of 250µV, 1pA input bias current, and 0.00053% harmonic distortion. Designed for surface mount applications, it operates from a 2.5V to 5.5V supply and is housed in a lead-free SOIC package. Key performance metrics include 70dB CMRR, 74dB PSRR, and 110dB voltage gain.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6022-E/SN technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
10MHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
10MHz
Harmonic Distortion
0.00053%
Height
0.049inch
Input Bias Current
1pA
Input Offset Voltage (Vos)
250uV
Input Offset Voltage-Max
500uV
Lead Free
Lead Free
Length
0.192inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
2mA
Output Current
22mA
Output Current per Channel
30mA
Package Quantity
100
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
74dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
7V/µs
Slew Rate-Nom
7V/µs
Supply Current
1mA
Technology
CMOS
Unity Gain Bandwidth Product
10MHz
Voltage Gain
110dB
Width
0.154inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6022-E/SN Datasheet
Download the complete datasheet for Microchip MCP6022-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

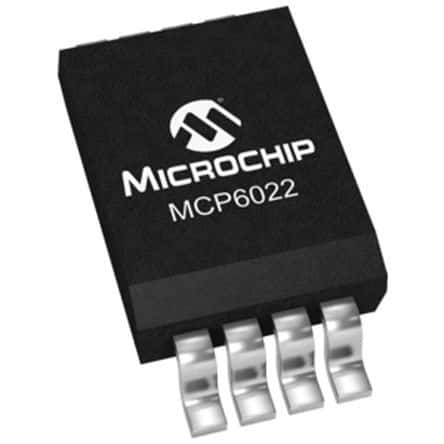

Product Images
