Single-channel, general-purpose operational amplifier featuring a 10MHz gain bandwidth product and 7V/µs slew rate. This CMOS amplifier offers a low input offset voltage of 250µV and a minimal input bias current of 1pA. Operating from 2.5V to 5.5V supply voltage, it provides 110dB voltage gain and 22mA output current. Packaged in a lead-free, RoHS compliant TSSOP-8 surface mount package, it operates across a -40°C to 125°C temperature range.
PackageTSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP6023T-E/ST technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TSSOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
10MHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
250uV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1mA
Output Current
22mA
Output Current per Channel
30mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
74dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
7V/µs
Supply Current
1mA
Technology
CMOS
Unity Gain Bandwidth Product
10MHz
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Microchip MCP6023T-E/ST Datasheet
Download the complete datasheet for Microchip MCP6023T-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

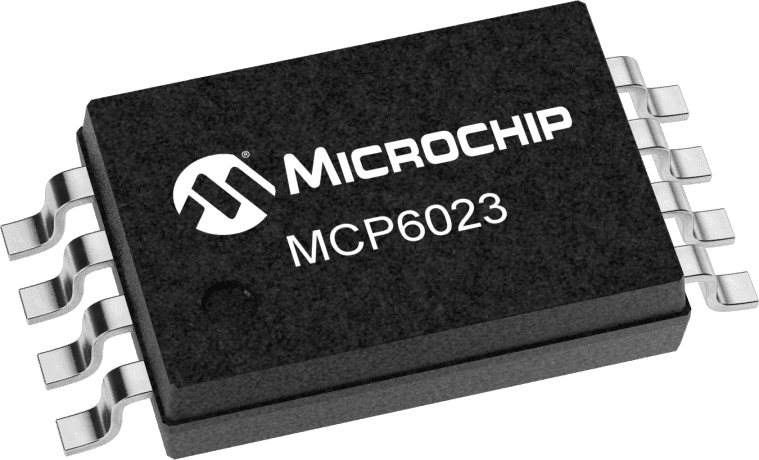

Product Images
